Automated Battery Stacking Assembly Line

Briefing

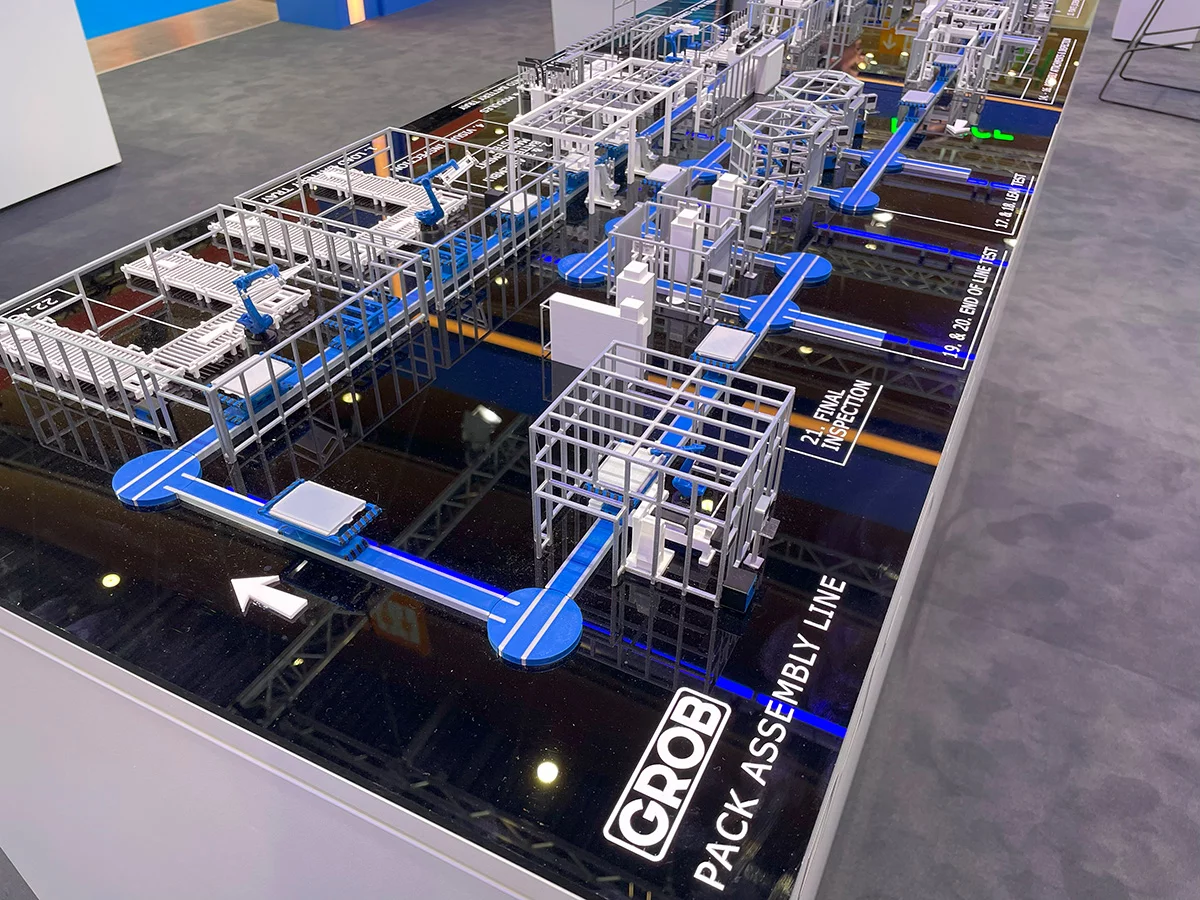

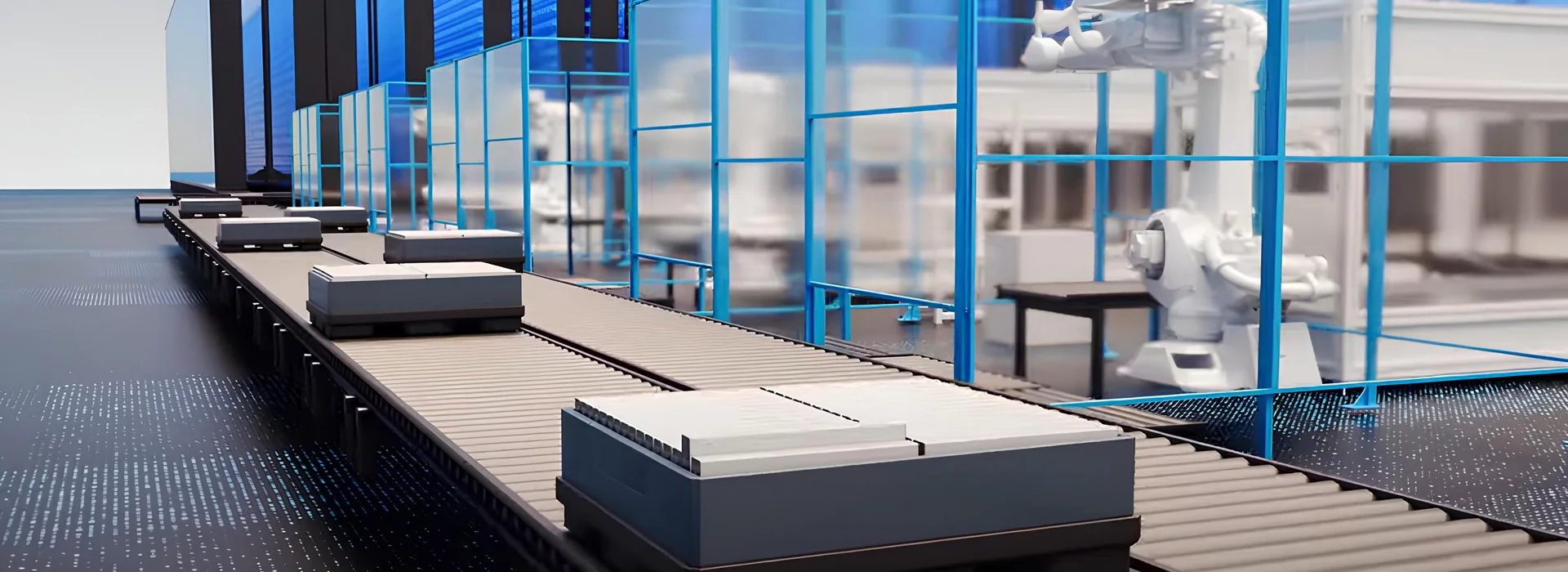

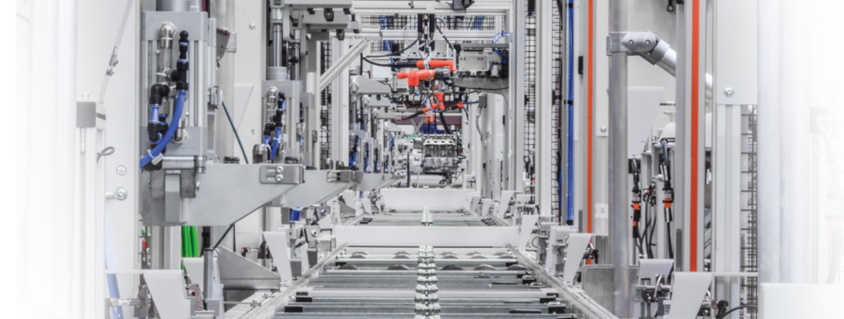

Automated Battery Stacking Assembly Line planned to be based in BlueOval Battery Park, Marshall, Michigan. Designed and constructed by GROB-WERKE GmbH & Co. KG, Mindelheim in Germany. High-tech process that requires extreme precision. Automated line starting from receiving the battery cell. After OCV test navigated through a series of conveyor systems stacked into rows. Rows became matrix just before insertion into the sub assembly tray. Pressed into place. MapVision system to detect all welding spots coordinates. BBM welded onto the matrix gets voltage potential tested and sent to the next process.
Images: durr.com

• PLC software development according to FORD FAST Standard.
• Software development OCV stations
• Software development MapVision station.
• Software development Robot Handling stations using Fanuc Robots.
• Software development Conveyor systems.
• Software development on a Fitting process station using PROMESS.
• Developing software solutions in TIA Portal V18 (LD, SCL). Using SIMATIC S7-1500 Software Controller and WinCC Unified
